ARLON® Self-Fusing Silicone Tapes


  • Available in varying thicknesses and widths
  • High dielectric strength
  • RoHS compliant
  • Class H Material, designed for continuous operation at 180°C, 356°F
  • Temperature range of -54 to 260°C (-65 to 500°F)
  • Excellent moisture, oxygen and ozone resistance to assure continuous high insulation values
  • Excellent and smooth conformability
  • Bonds only to itself, permanently within 24 hours (faster with Rapid-Bond)
  • Insulates with a single wrap

They are produced from specially formulated silicone rubber that allows them to bond only to themselves. The permanent bond provides an insulating barrier resistant to moisture, ozone and corona over a wide temperature range. ARLON fusible tapes provide superior electrical insulation and have met the needs of thousands of demanding applications over the years.

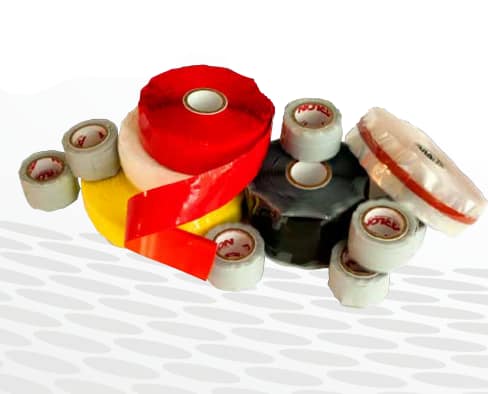

Image(s) courtesy of Rogers Corporation
