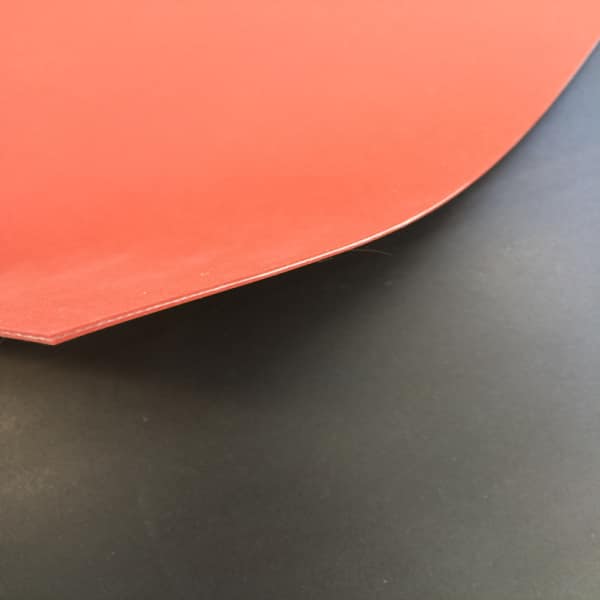

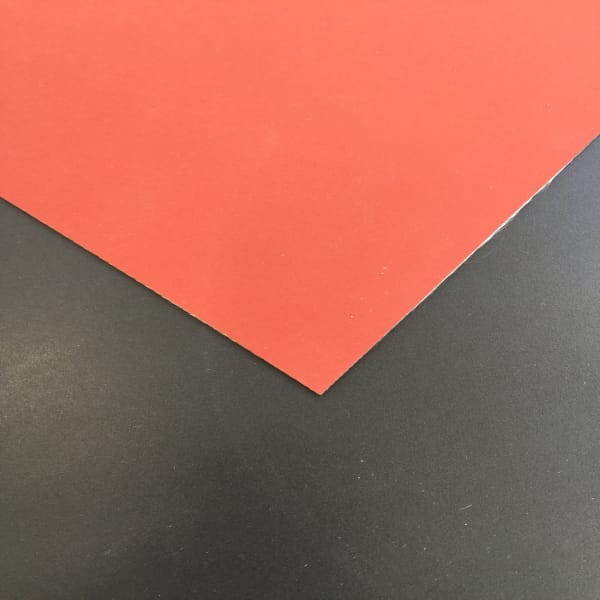

Made of high performance silicone-fabric composites. The specially formulated silicone rubber compounds used in UltraPad press pads are designed for optimum thermal stability and compressibility in the lamination environment. This allows UltraPad press pads to deliver consistent performance from the first cycle to the last. UltraPad press pads eliminate the need for single-use, throwaway pressure distribution vehicles, allowing circuit manufacturers to lower waste and cost.
Image(s) courtesy of Rogers Corporation
For more info, please directly contact:
Mr Ivan Lau
Email: lau.ivan@ese.com.sg
Phone: (65) 68622288 ext 111
• Thicknesses ranging from 16Mils/ .4 mm to 62 Mils/1.6 mm
• Service temperature up to 300°C
• Service pressure up to 1,450 PSI/up to 10 MPa
• Service life ranging from 80 to 140 hours (225°C/2.1 MPa or 300 PSI)
• Designed for optimum thermal stability and compressibility
• Cost effective press pad solution
• Superior reversion resistance
• Environmentally friendly; eliminates need for single-use, throwaway pressure distribution vehicles
Arlon-Alum-Clad-Ultrapad-90B32R016AC
