General Purpose NAMUR 3/2 – 5/2 Reflex Series

Description

Top face air connection
1/4” BSP mains air connection and exhaust ports
Screwdriver override as standard
Integrated Exhaust to Spring (ETS) feature in 3/2 position
Cv = 1.0
Built in 3/2 to 5/2 function conversion facility for spring return and double acting actuators respectively

Solenoid valve designed for direct mounting onto 1/4 turn pneumatically operated valve actuators meeting ‘NAMUR’ standard fixing dimensions.

Value engineered for single operator, safe area applications.

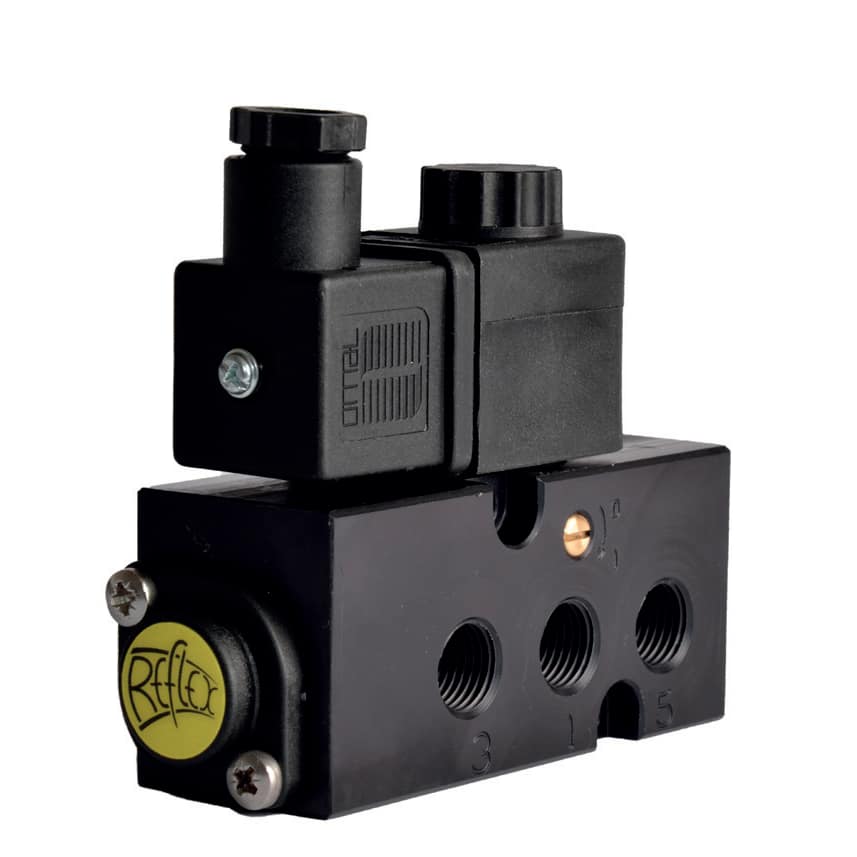

Valve is illustrated with a safe area plug &
socket coil.
Body material – Aluminium
